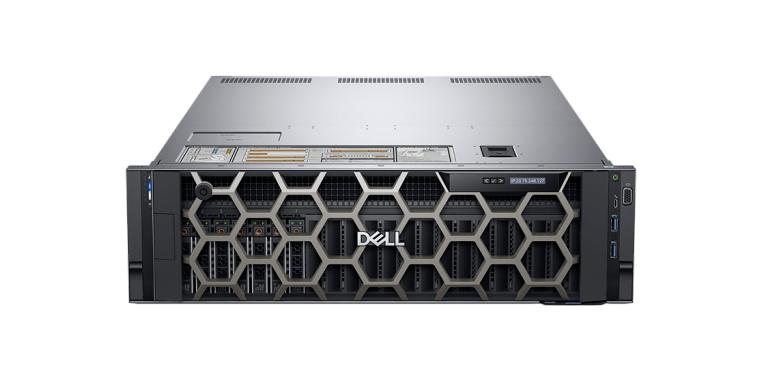

PowerEdge R940 機架式服務器
詳細說明
處理器
多達四個英特爾?至強?可擴展處理器，多達28個核心
操作系統選項
Canonical? Ubuntu? LTS Citrix? XenServer?
Microsoft Windows Server?，帶Hyper-V Red Hat? Enterprise Linux
SUSE? Linux Enterprise Server VMware? ESXi
內存i
48個DDR4 DIMM插槽，支持RDIMM/LRDIMM，速度高達2666 MT/s，最高6 TB
多達12個NVDIMM，最高384 GB
僅支持寄存式ECC DDR4 DIMM
存儲
Front Bays
Up to 24 x 2.5” drives with up to 12NVMe PCie SSDs max 184.32TB
存儲控制器
Internal Controllers
PERC H730P, H740P, H330, HBA330
External Controllers
12Gbps SAS HBA
Software RAID
S140
Internal Boot
Boot Optimized Storage Subsystem (BOSS):
HWRAID 2 x M.2 SSDs 240GB, 480GB
Internal Dual SD Module
安全性
Cryptographically signed firmware
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown (requires OpenManage Enterprise)
TPM 1.2/2.0, TCM 2.0 optional
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown (requires OpenManage Enterprise)
TPM 1.2/2.0, TCM 2.0 optional
管理
符合IPMI 2.0標準
帶生命周期控制器的iDRAC9（Express、Enterprise）Quick Sync 2無線模塊（可選）
OpenManage軟件：
企業級OpenManage
OpenManage Essentials
OpenManage Mobile
OpenManage Power Center
電源
1100W -48VDC Gold
1100W Platinum
1100W 380VDC Platinum
1600W Platinum
2000W Platinum
2400W Platinum
Hot plug power supplies with full redundancy option
Up to 8 hot plugs fans with full redundancy
1100W Platinum
1100W 380VDC Platinum
1600W Platinum
2000W Platinum
2400W Platinum
Hot plug power supplies with full redundancy option
Up to 8 hot plugs fans with full redundancy
